Ant Desgin X 联调 Dify

0.前提条件

Ant Desogin X 要求 vue 版本不低于 3.5，因此这里直接选择 vite 进行项目的创建。
创建项目时，指定项目类型为 Vue + TypeScript。
所使用的 node.js 版本信息为 20.17.0。

1.环境准备

1.1 创建一个vue项目

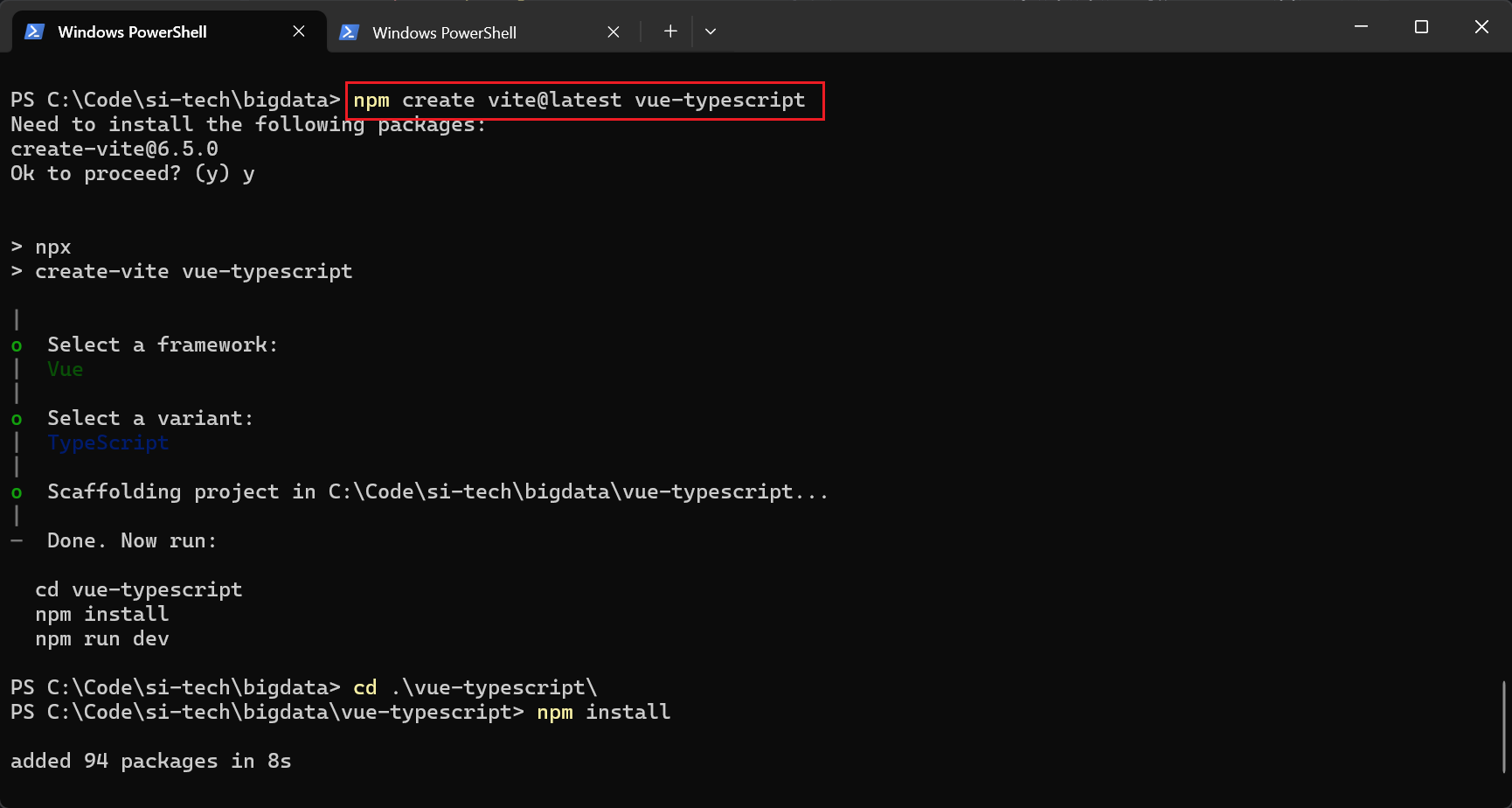

使用 vite 进行项目的创建，创建命令如下，在创建项目的时候声明项目类型为 Vue + TypeScript。

npm create vite@latest vue-typescript

创建操作执行完成后，进入项目目录下，依次执行如下命令即可运行 Vue 项目。

# 安装项目依赖
npm install
# 运行vue项目
npm run dev

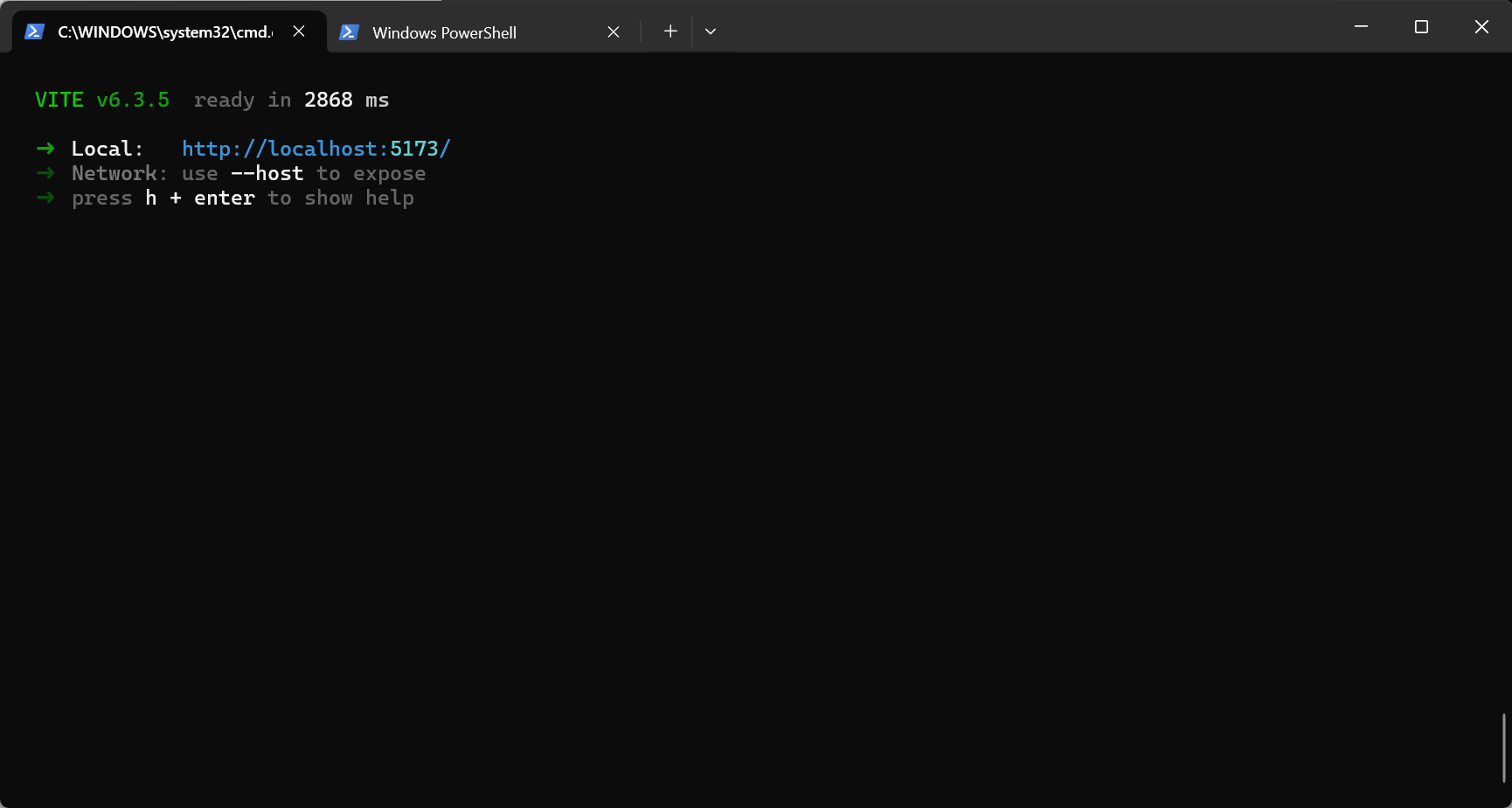

访问终端显示的运行地址，可以看到如下页面，说明项目创建成功。

1.2 安装 `ant-design-x-vue`

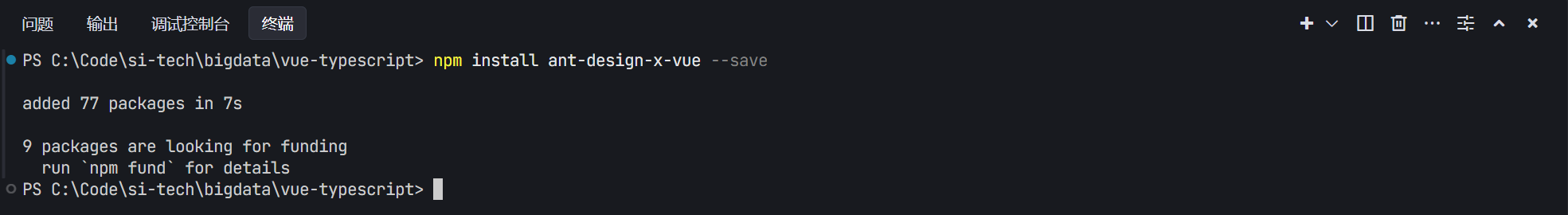

这里直接使用 npm 安装 ant-design-x-vue，命令如下所示：

npm install ant-design-x-vue --save

2.项目开发

直接使用 Ant Design X Vue 项目官方提供的代码进行测试，代码地址：https://antd-design-x-vue.netlify.app/playground/independent.html，代码内容如下所示：

<script setup lang="ts">
import type { AttachmentsProps, BubbleListProps, ConversationsProps, PromptsProps } from 'ant-design-x-vue'
import type { VNode } from 'vue'
import {
  CloudUploadOutlined,
  CommentOutlined,
  EllipsisOutlined,
  FireOutlined,
  HeartOutlined,
  PaperClipOutlined,
  PlusOutlined,
  ReadOutlined,
  ShareAltOutlined,
  SmileOutlined,
} from '@ant-design/icons-vue'
import { Badge, Button, Flex, Space, Typography, theme } from 'ant-design-vue'
import {
  Attachments,
  Bubble,
  Conversations,
  Prompts,
  Sender,
  useXAgent,
  useXChat,
  Welcome,
} from 'ant-design-x-vue'
import { computed, h, ref, watch } from 'vue'

const { token } = theme.useToken()

const styles = computed(() => {
  return {
    'layout': {
      'width': '100%',
      'min-width': '1000px',
      'height': '722px',
      'border-radius': `${token.value.borderRadius}px`,
      'display': 'flex',
      'background': `${token.value.colorBgContainer}`,
      'font-family': `AlibabaPuHuiTi, ${token.value.fontFamily}, sans-serif`,
    },
    'menu': {
      'background': `${token.value.colorBgLayout}80`,
      'width': '280px',
      'height': '100%',
      'display': 'flex',
      'flex-direction': 'column',
    },
    'conversations': {
      'padding': '0 12px',
      'flex': 1,
      'overflow-y': 'auto',
    },
    'chat': {
      'height': '100%',
      'width': '100%',
      'max-width': '700px',
      'margin': '0 auto',
      'box-sizing': 'border-box',
      'display': 'flex',
      'flex-direction': 'column',
      'padding': `${token.value.paddingLG}px`,
      'gap': '16px',
    },
    'messages': {
      flex: 1,
    },
    'placeholder': {
      'padding-top': '32px',
      'text-align': 'left',
      'flex': 1,
    },
    'sender': {
      'box-shadow': token.value.boxShadow,
    },
    'logo': {
      'display': 'flex',
      'height': '72px',
      'align-items': 'center',
      'justify-content': 'start',
      'padding': '0 24px',
      'box-sizing': 'border-box',
    },
    'logo-img': {
      width: '24px',
      height: '24px',
      display: 'inline-block',
    },
    'logo-span': {
      'display': 'inline-block',
      'margin': '0 8px',
      'font-weight': 'bold',
      'color': token.value.colorText,
      'font-size': '16px',
    },
    'addBtn': {
      background: '#1677ff0f',
      border: '1px solid #1677ff34',
      width: 'calc(100% - 24px)',
      margin: '0 12px 24px 12px',
    },
  } as const
})

defineOptions({ name: 'PlaygroundIndependentSetup' })


function renderTitle(icon: VNode, title: string) {
  return h(Space, { align: 'start' }, [icon, h('span', title)])
}

const defaultConversationsItems = [
  {
    key: '0',
    label: 'What is Ant Design X?',
  },
]

const placeholderPromptsItems: PromptsProps['items'] = [
  {
    key: '1',
    label: renderTitle(h(FireOutlined, { style: { color: '#FF4D4F' } }), 'Hot Topics'),
    description: 'What are you interested in?',
    children: [
      {
        key: '1-1',
        description: `What's new in X?`,
      },
      {
        key: '1-2',
        description: `What's AGI?`,
      },
      {
        key: '1-3',
        description: `Where is the doc?`,
      },
    ],
  },
  {
    key: '2',
    label: renderTitle(h(ReadOutlined, { style: { color: '#1890FF' } }), 'Design Guide'),
    description: 'How to design a good product?',
    children: [
      {
        key: '2-1',
        icon: h(HeartOutlined),
        description: `Know the well`,
      },
      {
        key: '2-2',
        icon: h(SmileOutlined),
        description: `Set the AI role`,
      },
      {
        key: '2-3',
        icon: h(CommentOutlined),
        description: `Express the feeling`,
      },
    ],
  },
]

const senderPromptsItems: PromptsProps['items'] = [
  {
    key: '1',
    description: 'Hot Topics',
    icon: h(FireOutlined, { style: { color: '#FF4D4F' } }),
  },
  {
    key: '2',
    description: 'Design Guide',
    icon: h(ReadOutlined, { style: { color: '#1890FF' } }),
  },
]

const roles: BubbleListProps['roles'] = {
  ai: {
    placement: 'start',
    typing: { step: 5, interval: 20 },
    styles: {
      content: {
        borderRadius: '16px',
      },
    },
  },
  local: {
    placement: 'end',
    variant: 'shadow',
  },
}

// ==================== State ====================
const headerOpen = ref(false)
const content = ref('')
const conversationsItems = ref(defaultConversationsItems)
const activeKey = ref(defaultConversationsItems[0].key)
const attachedFiles = ref<AttachmentsProps['items']>([])
const agentRequestLoading = ref(false)

// ==================== Runtime ====================
const [agent] = useXAgent({
  request: async ({ message }, { onSuccess }) => {
    agentRequestLoading.value = true
    await sleep()
    agentRequestLoading.value = false
    onSuccess(`Mock success return. You said: ${message}`)
  },
})

const { onRequest, messages, setMessages } = useXChat({
  agent: agent.value,
})

watch(activeKey, () => {
  if (activeKey.value !== undefined) {
    setMessages([])
  }
}, { immediate: true })

// ==================== Event ====================
function onSubmit(nextContent: string) {
  if (!nextContent)
    return
  onRequest(nextContent)
  content.value = ''
}

const onPromptsItemClick: PromptsProps['onItemClick'] = (info) => {
  onRequest(info.data.description as string)
}

function onAddConversation() {
  conversationsItems.value = [
    ...conversationsItems.value,
    {
      key: `${conversationsItems.value.length}`,
      label: `New Conversation ${conversationsItems.value.length}`,
    },
  ]
  activeKey.value = `${conversationsItems.value.length}`
}

const onConversationClick: ConversationsProps['onActiveChange'] = (key) => {
  activeKey.value = key
}

const handleFileChange: AttachmentsProps['onChange'] = info => attachedFiles.value = info.fileList

// ==================== Nodes ====================
const placeholderNode = computed(() => h(
  Space,
  { direction: "vertical", size: 16, style: styles.value.placeholder },
  [
    h(
      Welcome,
      {
        variant: "borderless",
        icon: "https://mdn.alipayobjects.com/huamei_iwk9zp/afts/img/A*s5sNRo5LjfQAAAAAAAAAAAAADgCCAQ/fmt.webp",
        title: "Hello, I'm Ant Design X",
        description: "Base on Ant Design, AGI product interface solution, create a better intelligent vision~",
        extra: h(Space, {}, [h(Button, { icon: h(ShareAltOutlined) }), h(Button, { icon: h(EllipsisOutlined) })]),
      }
    ),
    h(
      Prompts,
      {
        title: "Do you want?",
        items: placeholderPromptsItems,
        styles: {
          list: {
            width: '100%',
          },
          item: {
            flex: 1,
          },
        },
        onItemClick: onPromptsItemClick,
      }
    )
  ]
))

const items = computed<BubbleListProps['items']>(() => {
  if (messages.value.length === 0) {
    return [{ content: placeholderNode, variant: 'borderless' }]
  }
  return messages.value.map(({ id, message, status }) => ({
    key: id,
    loading: status === 'loading',
    role: status === 'local' ? 'local' : 'ai',
    content: message,
  }))
})
</script>

<template>
  <div :style="styles.layout">
    <div :style="styles.menu">
      <!-- 🌟 Logo -->
      <div :style="styles.logo">
        <img
          src="https://mdn.alipayobjects.com/huamei_iwk9zp/afts/img/A*eco6RrQhxbMAAAAAAAAAAAAADgCCAQ/original"
          draggable="false"
          alt="logo"
          :style="styles['logo-img']"
        >
        <span :style="styles['logo-span']">Ant Design X Vue</span>
      </div>

      <!-- 🌟 添加会话 -->
      <Button
        type="link"
        :style="styles.addBtn"
        @click="onAddConversation"
      >
        <PlusOutlined />
        New Conversation
      </Button>

      <!-- 🌟 会话管理 -->
      <Conversations
        :items="conversationsItems"
        :style="styles.conversations"
        :active-key="activeKey"
        @active-change="onConversationClick"
      />
    </div>

    <div :style="styles.chat">
      <!-- 🌟 消息列表 -->
      <Bubble.List
        :items="items"
        :roles="roles"
        :style="styles.messages"
      />

      <!-- 🌟 提示词 -->
      <Prompts
        :items="senderPromptsItems"
        @item-click="onPromptsItemClick"
      />

      <!-- 🌟 输入框 -->
      <Sender
        :value="content"
        :style="styles.sender"
        :loading="agentRequestLoading"
        @submit="onSubmit"
        @change="value => content = value"
      >
        <template #prefix>
          <Badge :dot="attachedFiles.length > 0 && !headerOpen">
            <Button
              type="text"
              @click="() => headerOpen = !headerOpen"
            >
              <template #icon>
                <PaperClipOutlined />
              </template>
            </Button>
          </Badge>
        </template>

        <template #header>
          <Sender.Header
            title="Attachments"
            :open="headerOpen"
            :styles="{ content: { padding: 0 } }"
            @open-change="open => headerOpen = open"
          >
            <Attachments
              :before-upload="() => false"
              :items="attachedFiles"
              @change="handleFileChange"
            >
              <template #placeholder="type">
                <Flex
                  v-if="type && type.type === 'inline'"
                  align="center"
                  justify="center"
                  vertical
                  gap="2"
                >
                  <Typography.Text style="font-size: 30px; line-height: 1;">
                    <CloudUploadOutlined />
                  </Typography.Text>
                  <Typography.Title
                    :level="5"
                    style="margin: 0; font-size: 14px; line-height: 1.5;"
                  >
                    Upload files
                  </Typography.Title>
                  <Typography.Text type="secondary">
                    Click or drag files to this area to upload
                  </Typography.Text>
                </Flex>
                <Typography.Text v-if="type && type.type === 'drop'">
                  Drop file here
                </Typography.Text>
              </template>
            </Attachments>
          </Sender.Header>
        </template>
      </Sender>
    </div>
  </div>
</template>

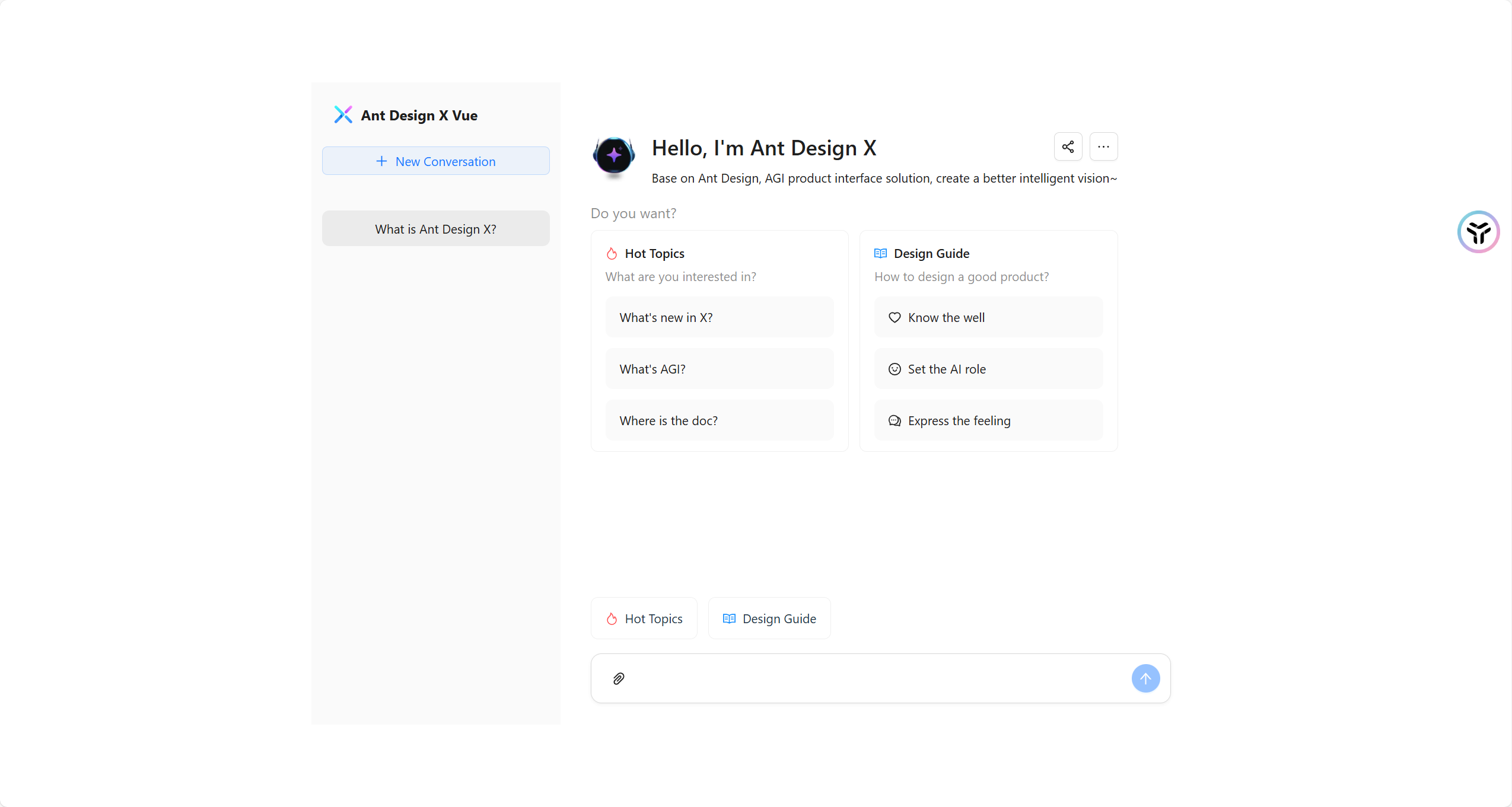

运行后，页面显示内容如下，这里先不对样式做调整，直接进行大模型的调用。

这里配置了 Dify 的 api 进行调用测试，与常规的前后端接口请求方式不同，大模型的接口支持流式模式，基于 SSE（Server-Sent Events） 实现类似打字机输出方式的流式响应，这里对接口的响应数据要进行特殊处理。

// 解析响应的JSON文本内容
function tryParseJSON(line: string) {
  try {
    return JSON.parse(line);
  } catch {
    return null;
  }
}

// 大模型对话
const [agent] = useXAgent({
  request: async ({ message }, { onSuccess, onUpdate, onError  }) => {
    agentRequestLoading.value = true
    try {
        // http://127.0.0.1:81/v1/chat-messages 这里是dify发送对话消息的接口
      const response = await fetch('http://127.0.0.1:81/v1/chat-messages', {
        method: 'POST',
        headers: {
          'Content-Type': 'application/json',
          'Authorization': 'Bearer app-sosbqnUmxQRzvpSmqsDfMAtr', // 秘钥
        },
        body: JSON.stringify({
          "inputs":{},
          "query": message,
          "response_mode": "streaming",
          "conversation_id": "",
          "user": "abc-123",
          "files":[]
        }),
      })

      if (!response.ok || !response.body) throw new Error('响应异常');

      const reader = response.body.getReader();
      const decoder = new TextDecoder('utf-8');
      let buffer = '';
      let fullText = '';

      while (true) {
        const { done, value } = await reader.read();
        if (done) break;

        buffer += decoder.decode(value, { stream: true });
        const lines = buffer.split('\n');
        buffer = lines.pop() || '';

        for (const line of lines) {
          if (!line.startsWith('data:')) continue;

          const jsonStr = line.replace(/^data:\s*/, '').trim();
          const parsed = tryParseJSON(jsonStr);
          // 这里是Dify工作流的判断逻辑，如其他大模型，需要具体查看
          if (parsed && parsed.event == 'workflow_finished') {
            const content = parsed.data.outputs.answer;
            fullText += content;
            onUpdate(fullText);
            onSuccess(fullText);  // 添加这行，在工作流完成时调用 onSuccess
          }
        }
      }
    } catch (error) {
      console.error('请求失败:', error)
      onError(error as Error)
    } finally {
      agentRequestLoading.value = false
    }
  },
})

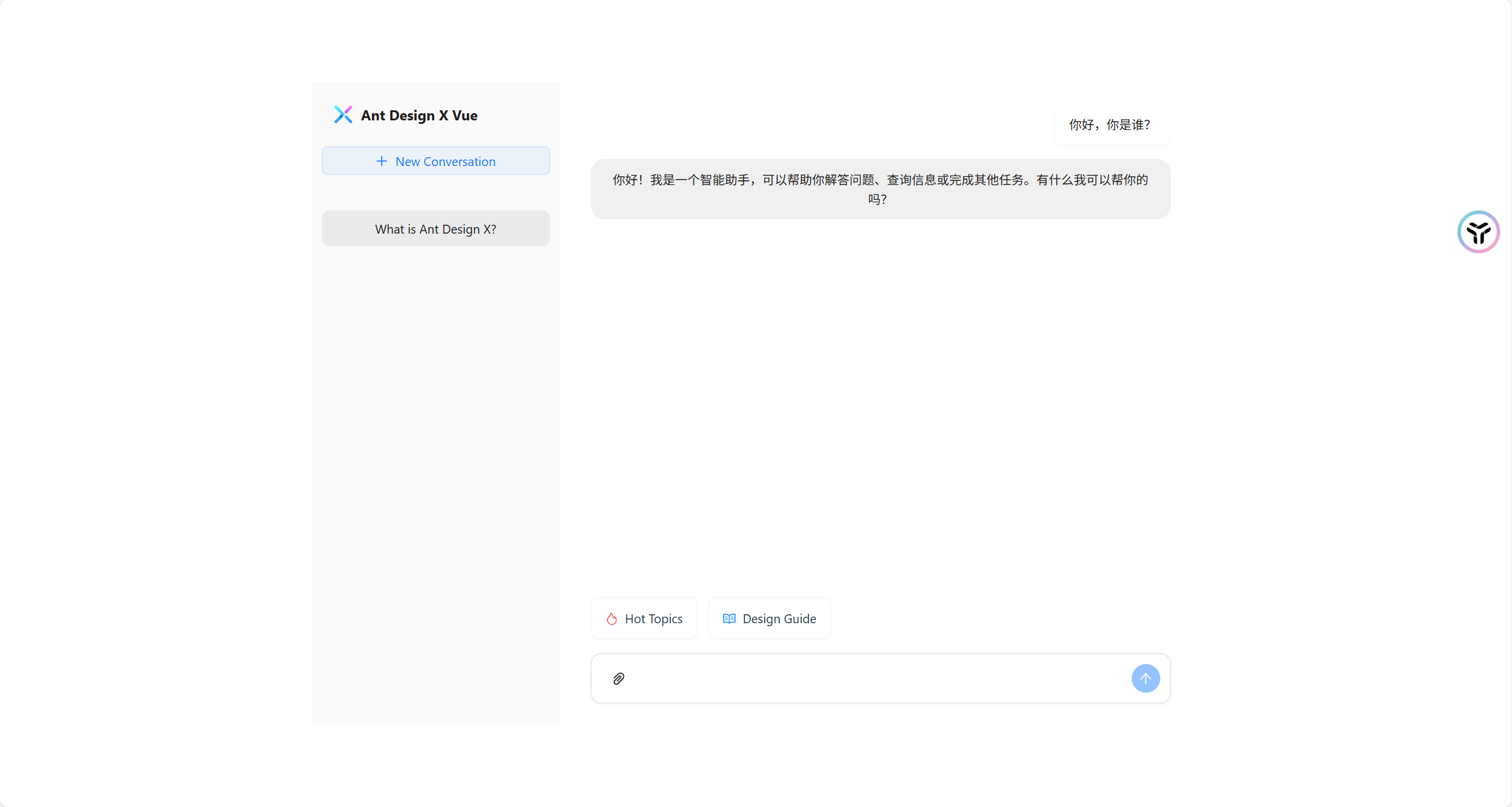

页面输入内容，能够正确进行响应，如下图所示

3.项目部署

这里对新创建的 Vue 项目进行优化，引入配置文件，使得项目更加完整。

在项目根目录下，创建一下两个文件，分别是开发环境以及生产环境的配置信息：
- .env.development
- .env.production
文件中写入后端大模型的服务地址，如下所示：
```
VITE_API_BASE_URL=http://127.0.0.1:81
```

修改 Vue 文件中请求大模型的地址，修改为如下样式：

// 修改前
const response = await fetch('127.0.0.1:81/v1/chat-messages', {
// 修改后
const response = await fetch(`${import.meta.env.VITE_API_BASE_URL}/v1/chat-messages`, {

修改 package.json 文件，执行项目执行不同操作的时候，使用的配置文件分别是什么，如下所示：

  "scripts": {
    "dev": "vite --mode development",

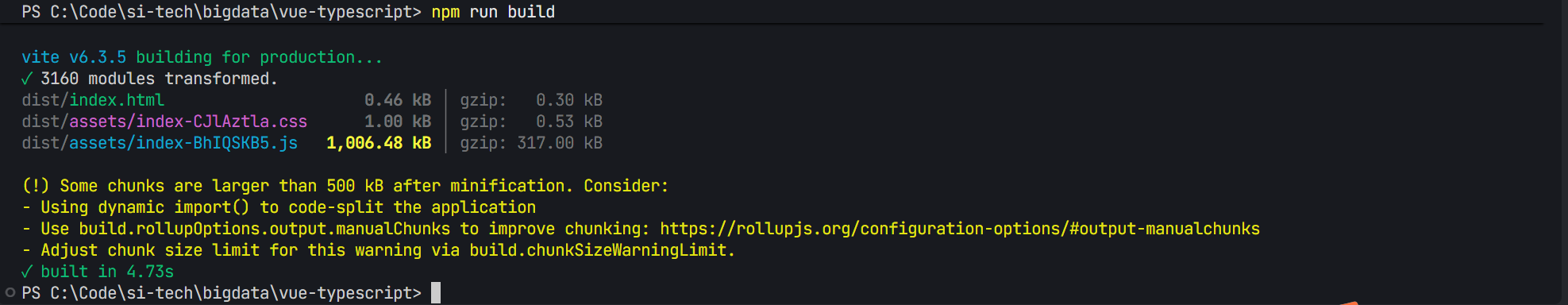

    "build": "vue-tsc -b && vite build --mode production",
    "preview": "vite preview --mode production"
  },

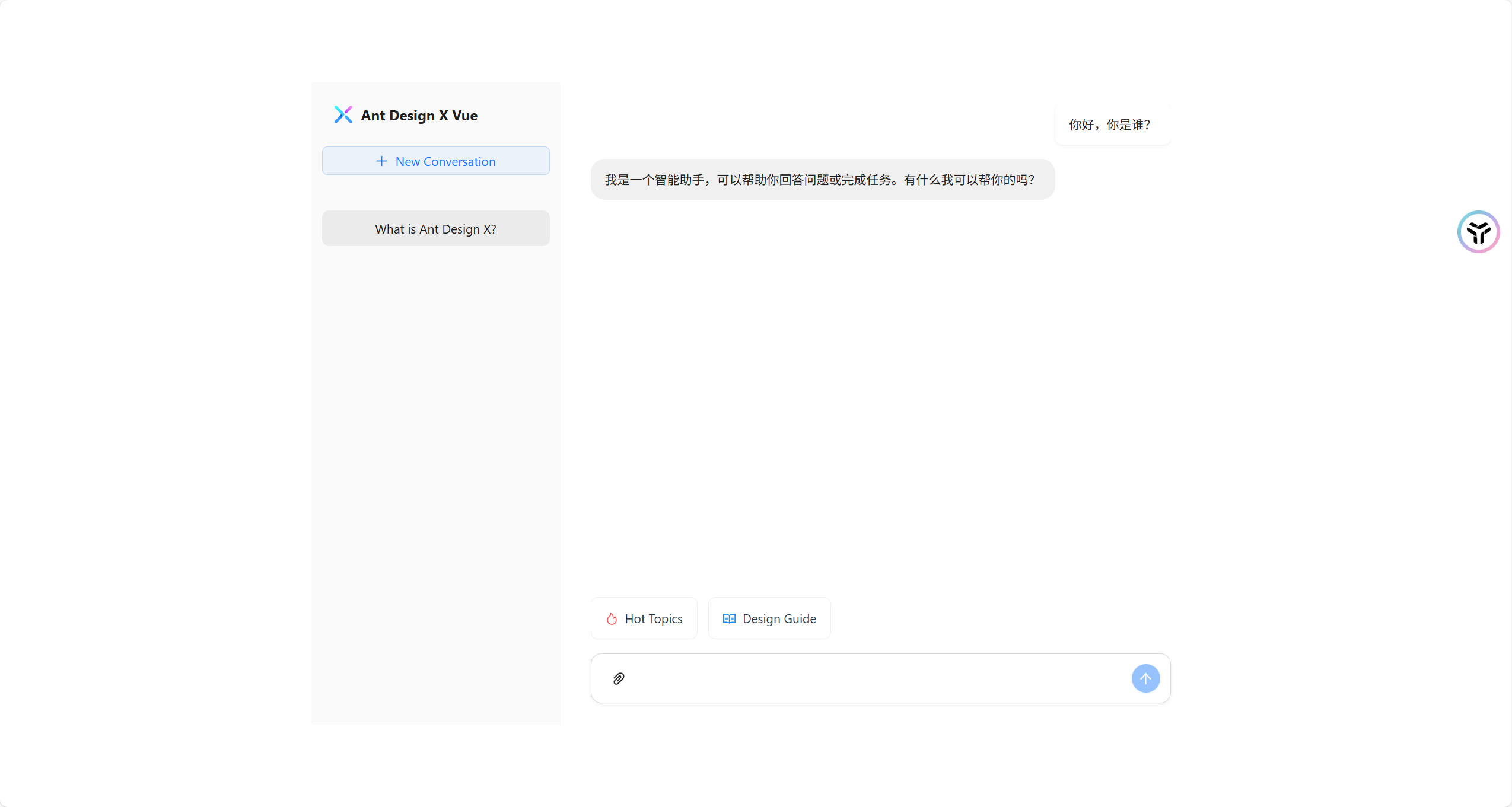

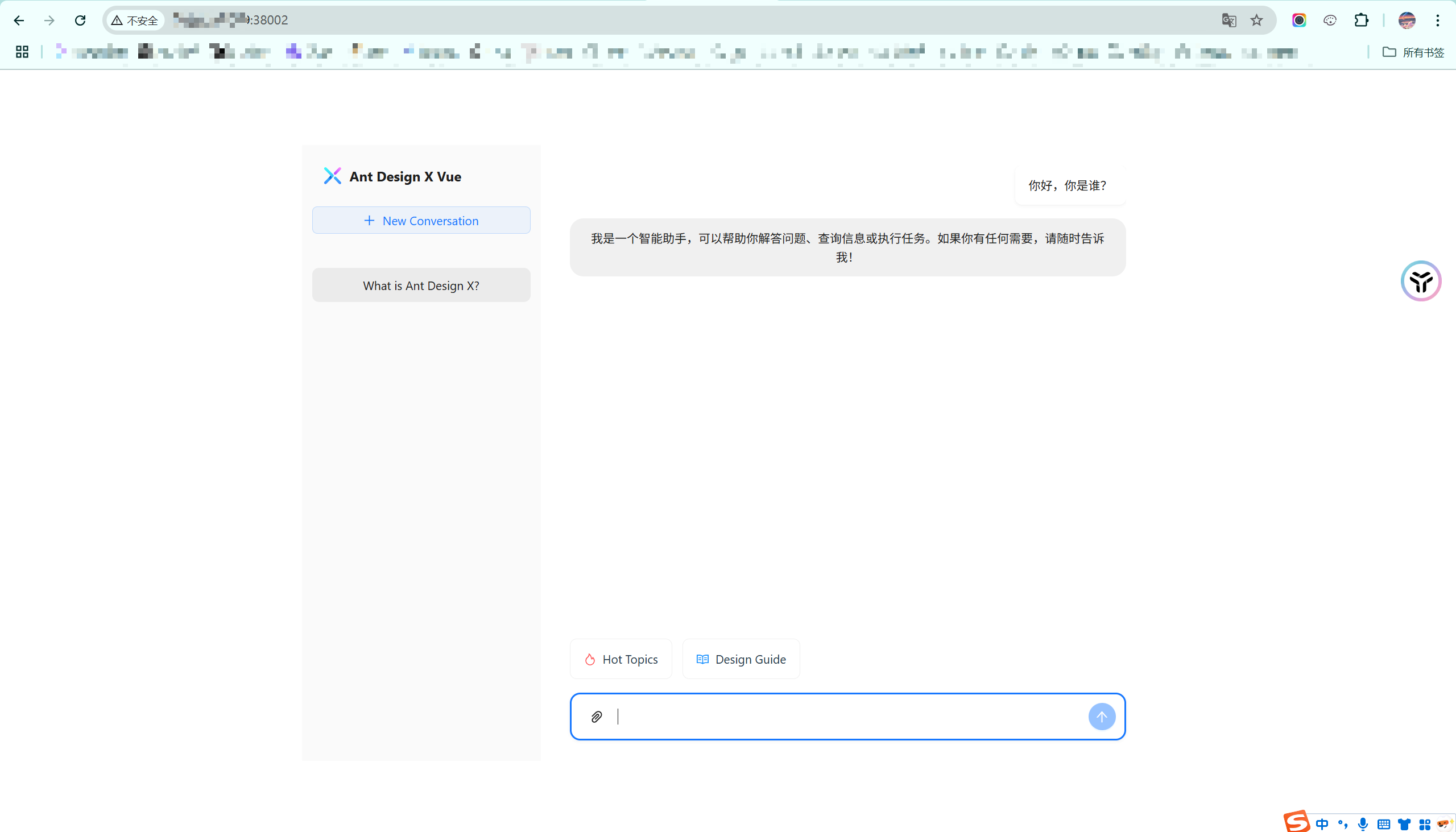

执行 npm run dev，运行项目进行测试，能够正常请求后端大模型服务，如下所示
执行 npm run build，打包当前项目部署到生产环境。
部署到远程主机后，能够正常进行请求，项目部署成功。

Ant Desgin X 联调 Dify

Ant Desgin X 联调 Dify

0.前提条件

1.环境准备

1.1 创建一个vue项目

1.2 安装 ant-design-x-vue

2.项目开发

3.项目部署

1.2 安装 `ant-design-x-vue`
